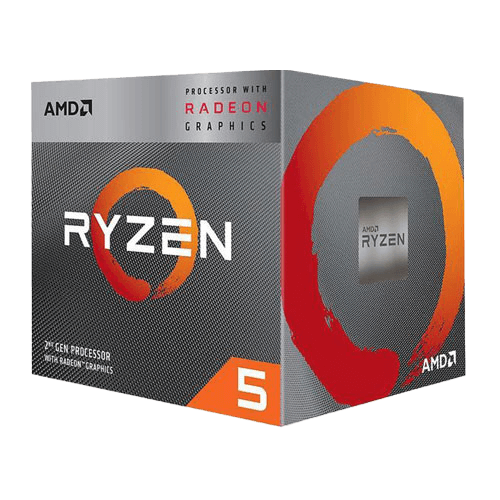

AMD RYZEN 5 3400G PROCESSOR ( Without Box/Fan )

Description

1 Year Warranty

Description :

Name: AMD Ryzen™ 5 3400G with Radeon™ RX Vega 11 Graphics

Family: Ryzen

Series: Ryzen 3000 Series

Form Factor: Desktops , Boxed Processor

Market Segment: Mainstream Desktop

AMD PRO Technologies: No

Consumer Use: Yes

Regional Availability: Global , China , NA , EMEA , APJ , LATAM

Former Codename: Picasso

Architecture: Zen+

# of CPU Cores: 4

Multithreading (SMT): Yes

# of Threads: 8

Max. Boost Clock: Up to 4.2 GHz

Base Clock: 3.7 GHz

L1 Cache: 384 KB

L2 Cache: 2 MB

L3 Cache: 4 MB

Default TDP: 65W

AMD Configurable TDP (cTDP): 45-65W

Processor Technology for CPU Cores: 12nm FinFET

CPU Compute Die (CCD) Size: 210mm²

Package Die Count: 1

Total Transistor Count: 4.94 Billion

Unlocked for Overclocking: Yes

CPU Socket: AM4

Supporting Chipsets: X570 , X470 , X370 , B450 , B350 , A320

CPU Boost Technology: Precision Boost 2

Instruction Set: x86-64

Supported Extensions:
AES , AMD-V , AVX , FMA3 , MMX-plus , SHA , SSE , SSE2 , SSE3 , SSE4.1 , SSE4.2 , SSE4A , SSSE3 , x86-64

Thermal Solution (PIB): AMD Wraith Spire

Thermal Solution (MPK): AMD Wraith Spire

Max. Operating Temperature (Tjmax): 95°C

*OS Support: Windows 10 – 64-Bit Edition , RHEL x86 64-Bit , Ubuntu x86 64-Bit



Connectivity

Native USB 3.2 Gen 2 (10Gbps) Ports: 0

Native USB 3.2 Gen 1 (5Gbps) Ports: 4

Native USB 2.0 (480Mbps) Ports: 0

Native SATA Ports: 0

PCI Express® Version: PCIe® 3.0

Native PCIe® Lanes (Total/Usable): 20 , 16

Additional Usable PCIe Lanes from Motherboard: X470 2x Gen 3, 8x Gen 2

NVMe Support: Boot , RAID0 , RAID1 , RAID10

System Memory Type: DDR4

Memory Channels: 2

Max. Memory: 64 GB

System Memory Subtype: UDIMM

Max Memory Speed:
2x1R DDR4-2933
2x2R DDR4-2667
4x1R DDR4-2133
4x2R DDR4-1866

ECC Support: Yes (Requires mobo support)



Graphics Capabilities

Graphics Model: Radeon™ RX Vega 11 Graphics

Graphics Core Count: 11

Total Graphics Shaders: 704

Graphics Frequency: 1400 MHz

GPU Max. Memory: 2 GB

WDDM Version: 2.7

DirectX® Version: 12

OpenGL®: 4.6

OpenCL™: 2.2

DisplayPort™ Version: 1.4a

DisplayPort Extensions: HBR3 , HDR Metadata , Adaptive-Sync

DisplayPort Max Refresh Rates (SDR): 3840×2160 @ 60Hz , 3440×1440 @ 144Hz , 2560×1440 @ 180Hz , 1920×1080 @ 240Hz

DisplayPort Max Refresh Rates (HDR): 3840×2160 @ 60Hz , 3440×1440 @ 60Hz , 2560×1440 @ 60Hz , 1920×1080 @ 120Hz

HDMI® Version: 2.0

HDCP Version Supported: 2.2

USB Type-C® DisplayPort™ Alternate Mode: Yes

Multi-Monitor Support: Yes

Max Displays: 3

AMD FreeSync™: Yes

AMD Eyefinity Single Large Surface (SLS): No

Wireless Display: Miracast

Max Video Encode Bandwidth (SDR): 1080p205 8bpc H.264, 1440p115 8bpc H.264, 2160p51 8bpc H.264, 1080p205 8bpc H.265, 1440p115 8bpc H.265, 2160p51 8bpc H.265

Max Video Decode Bandwidth:
1080p60 MPEG2, 1080p60 VC1, 1080p240 8bpc VP9, 1080p240 10bpc VP9, 1080p240 H.264, 1080p240 8bpc H.265, 1080p240 10bpc H.265, 1080p240 JPEG 8bpc
